Hikvision DS-K1T804AMF Fingerprint Access Control Terminal
KES 16,500 | NEW | In stock

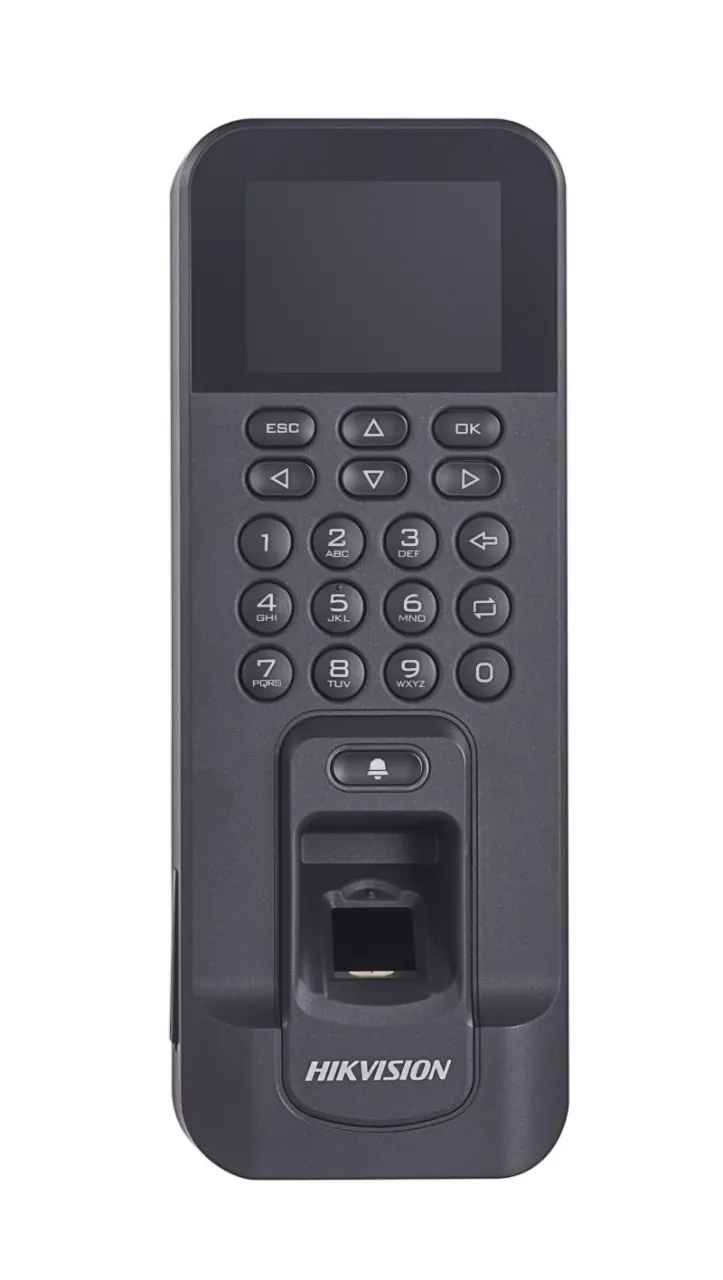

Hikvision DS-K1T804AMF Fingerprint Access Control Terminal
Integrated management of access control and the time and attendance functions
3,000 fingerprints, 3,000 cards and 100,000 events storage
Built-in card reader for Mifare1 card
Communication via TCP/TP and Wi-Fi
RS-485, wiegand interface
Alarm input and output interface
ISUP5.0, ISAPI
Hikvision DS-K1T804AMF Fingerprint Access Control Terminal
Introducing the Hikvision DS-K1T804AMF Fingerprint Access Control Terminal – your gateway to efficient and secure access management. Engineered with state-of-the-art technology and user-friendly design, this terminal offers a comprehensive solution for access control needs.
Features
Advanced Fingerprint Recognition: Elevate your security standards with precise and reliable fingerprint recognition technology. The DS-K1T804AMF ensures only authorized individuals gain access, eliminating the need for traditional keys or access cards.
Intuitive User Interface: Featuring an intuitive touchscreen interface, the DS-K1T804AMF simplifies access management tasks for administrators and users alike. Easily enroll new users, configure access permissions, and monitor system activity with just a few taps.
Scalable and Expandable: Whether you’re securing a small office or a large enterprise, the DS-K1T804AMF can scale to meet your needs. Easily expand your access control system by adding additional terminals and integrating them into a centralized management platform.
Reliable Performance: Backed by Hikvision’s reputation for reliability and quality, the DS-K1T804AMF delivers consistent performance in any environment. Its durable construction and advanced technology ensure years of trouble-free operation, minimizing downtime and maximizing security.
Specification
Specification
Display
Screen size 2.4-inch
Resolution 320 × 240
Type LCD-TFT display screen
Audio
Audio output 1 loudspeaker, 1 buzzer
Network
Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock control 1
Exit button 1
Door contact input 1
Alarm input 1
Alarm output 1
TAMPER 1
USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration ＜ 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
General
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Color Black (included), gold (optional), silver (optional), white (optional)
Dimensions 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
Installation Surface mounting
